| 中航ZEMIC称重传感器B8D系列 |
| 所属分类 >>
传感器 发布时间：2016-02-04 浏览量：
|
|
| 详细描述： |
◆不锈钢材料，单剪梁结构，胶封，压向承载。
◆防护等级IP67
◆适用于地磅、汽检线、料斗秤及各类电子称重设备。
推荐选择型号：
|
xxkg
|
C3/C5/A5S/A5M/B10S
|
B8D-xx-xxkg-6B
|
|
xxt
|
C3/C5/A5S/A5M/B10S
|
B8D-xx-xxt-6B
|
|
xxlb
|
A5S/A5M/B10S
|
B8D-xx-xx-6YB
|
|
xxklb
|
A5S/A5M/B10S
|
B8D-xx-xxk-6YB
|
|
250lb
|
C3
|
B8D-C3-250-6YB
|
|
15klb
|
C3
|
B8D-C3-15K-6YB
|
|
20klb
|
C3
|
B8D-C3-20K-6YB
|
|
200kg-500kg通过OIML C5级认证
500kg-5t通过OIML C3级测试
200kg-5t(500lb-10klb)通过NTEP A5S/A5M/B10S级认证
|
技术指标
|
额定载荷
|
t
|
0.5/1/2/5
|
|
klb
|
0.25/0.5/0.75/1/1.5/2/2.5/2.5KLE/3/4/5/5KSE/7.5/10/15/20
|
|
精度
|
|
C3
|
C5
|
A5S
|
A5M
|
B10M
|
|
认证 |
|
OIML R60 C3
|
OIML R60 C5
|
III 5000单只
|
III 5000多只
|
III 10000多只
|
|
最大检定分度数
|
n max
|
3000
|
5000
|
5000
|
5000
|
10000
|
|
最小检定分度值
|
v min
|
Emax/10000
|
Emax/18000
|
Emax/15000
|
Emax/15000
|
Emax/10000
|
|
综合误差
|
(%FS)
|
≤±0.020
|
≤±0.01
|
≤±0.018
|
≤±0.026
|
≤±0.050
|
|
蠕变
|
(%FS/30min)
|
≤±0.016
|
≤±0.012
|
≤±0.012
|
≤±0.017
|
≤±0.040
|
|
温度对输出灵敏度的影响
|
(%FS/10℃)
|
≤±0.011
|
≤±0.007
|
≤±0.009
|
≤±0.013
|
≤±0.040
|
|
温度对零点输出的影响
|
(%FS/10℃)
|
≤±0.015
|
≤±0.014
|
≤±0.010
|
≤±0.014
|
≤±0.020
|
|
输出灵敏度
|
(mv/v)
|
3.0±0.008
|
|
输入阻抗
|
(Ω)
|
350±3.5
|
|
输出阻抗
|
(Ω)
|
350±3.5
|
|
绝缘阻抗
|
(MΩ)
|
≥5000(50VDC)
|
|
零点输出
|
(%FS)
|
≤±1.0
|
|
温度补偿范围
|
(℃)
|
-10～+40
|
|
允许使用温度范围
|
(℃)
|
-35～+70
|
|
推荐激励电压
|
(V)
|
5～12(DC)
|
|
最大激励电压
|
(V)
|
18(DC)
|
|
安全过载范围
|
(%FS)
|
150
|
|
极限过载范围
|
(%FS)
|
300
|
|
ATEX等级（可选） |
|
II 1G Ex ia II 1C T4
|
II 1D Ex iaD20 T73℃
|
II 3G Ex nL II C T4
|

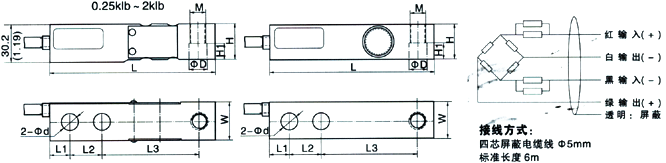

外形尺寸mm(inch)
|
尺寸
|
L
|
L1
|
L2
|
L3
|
d
|
H
|
W
|
D
|
H1
|
M
|
|
250lb,500lb,750lb,1Klb,1.5Klb,2Klb
|
130
(5.12)
|
15.7
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
13.46
(0.53)
|
28.4
(1.12)
|
30.7
(1.20)
|
13.4
(0.53)
|
14.22
(0.56)
|
M12-6H
1/2-20UNF-2B
|
|
0.5t,1t,2t
2.5Klb,3Klb,4Klb,5KSE
|
130
(5.12)
|
15.7
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
13.46
(0.53)
|
31.32
(1.23)
|
31.32
(1.23)
|
13.4
(0.53)
|
15.75
(0.62)
|
M12-6H
1/2-20UNF-2B
|
|
3t,5t
2.5KSE,5Klb,7.5Klb,10Klb,15Klb
|
171
(6.73)
|
19
(0.75)
|
38.1
(1.5)
|
95.2
(3.75)
|
20.65(0.81)
19.81(0.78)
|
36.8
(1.45)
|
36.8
(1.45)
|
20.65(0.81)
19.8(0.78)
|
19.05
(0.75)
|
M20X2.5-6H
3/4-16UNF-2B
|
|
20Klb
|
222.25
(8.75)
|
25.4
(1.0)
|
50.8
(2.0)
|
120.7
(4.75)
|
26.9
(1.06)
|
49.5
(1.95)
|
49.5
(1.95)
|
27.56
(1.08)
|
24.75
(0.97)
|
M24X2-6H
1-12UNF-2B
|
|
|
| |
|
|
|
|
|
| |
|
|
|
